Product Details
Place of Origin: Shenzhen China
Brand Name: Longyuan
Certification: FCC CE RoHS ISO90001
Model Number: LY-8829
Payment & Shipping Terms
Minimum Order Quantity: 1pcs(sample available)
Price: Negotiable
Packaging Details: Carton box package, 2layers/caraton, 100pcs/carton. Customized package also accept.
Delivery Time: 5-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/day
Product Name: |
Smart Electronic Solenoid Cabinet Lock |
Product Measurement: |
6.2cmx8cmx1.4cm |
Product Weight: |
0.2kg |
Maximum Power On Time: |
Less Than 5 Seconds |
Lock Material: |
SPCC,Powder Metallurgy |
Rated Voltage: |
DC12V(Voltage Customized) |
Current: |
2A |
Salt Spray Testing: |
≥48hours |
Product Name: |
Smart Electronic Solenoid Cabinet Lock |
Product Measurement: |
6.2cmx8cmx1.4cm |
Product Weight: |
0.2kg |
Maximum Power On Time: |
Less Than 5 Seconds |
Lock Material: |
SPCC,Powder Metallurgy |
Rated Voltage: |
DC12V(Voltage Customized) |
Current: |
2A |
Salt Spray Testing: |
≥48hours |
DC12V Intelligent Electric Cabinet Lock With High Sensitivity & Shockproof
Product Features

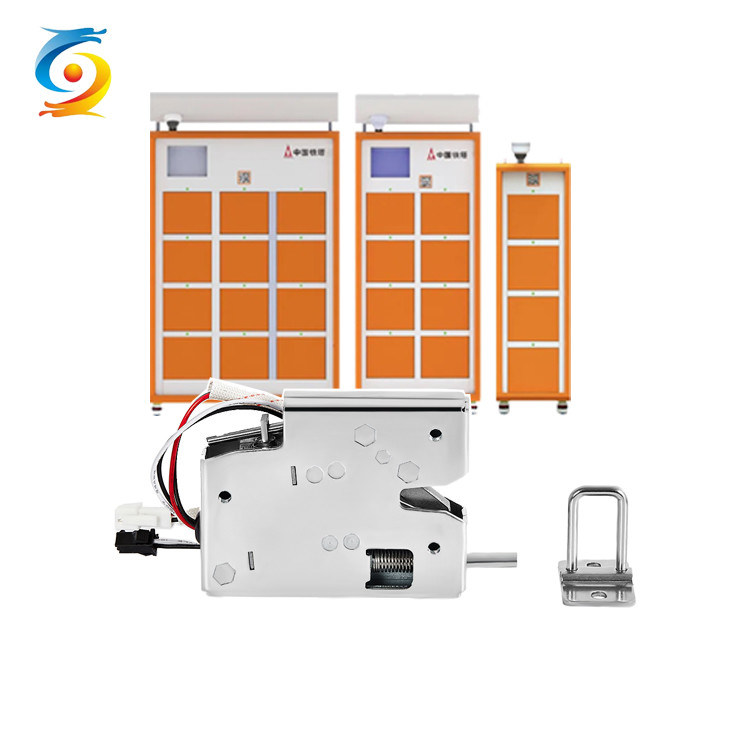

LY-8829 is an electromagnetic lock developed by Shenzhen Longyuan Lock factory. The electronic lock is activated by a high-strength engine gear, and has a fully automatic unlocking, which is suitable for kinds of different cabinets, lockers and etc, such as E-bike battery shared cabinet, Post Office smart lockers,bus station smart lockers,travel centers luggage storage cabinet,smart pick-up point lockers etc.
Principle
It is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM.
Failure analysis
How to judge equipment failure?
1. Equipment Power-off
Unlock method: Unlock by emergency pull rod method
2. The lock latch is not centered and offset
Unlock method: Unlock the emergency lever and pry the door
3. Power-on time is too long Cause the electromagnet frame to burn
Unlock method: Pry emergency lever to unlock
|
Product name |
Electromagnetic lock |
|
Place of Origin |
Shenzhen China |
|
Brand Name |
Longyuan Lock |
|
Model Number |
LY-8829 |
|
Lock Body size |
62mm*80mm*14mm |
|
Weight |
194g |
|
Material |
SPCC,Powder Metallurgy |
|
Surface treatment |
Galvanized |
|
Cable outer leakage length |
170mm(accept customized) |
|
Rated Voltage |
DC12V(accept customized) |
|
Min Unlock Voltage |
10V |
|
Current |
2A |
|
Max Power |
30W |
|
Manner of working |
Open after power on |
|
Reaction time |
0.3sec |
|
Blackout interval |
>5sec |
|
Salt spray testing |
≥48hours |
|
Working temperature |
-40℃ to +80℃ |
|
Working humidity |
95% |
|
Working life |
more than 100,000 times |
|
Sample |
Available |
|
OEM |
Accepted |
|
Signal detection/ switch(open/close) |
Open/ Close Feedback for option |
|
Install way |
Screw |
|
Unlock way |
power on and emergency lever |
|
Certification |
CE,ISO9001, RoHS |
|
Warranty |
1year |
Packing List
Standard package: Carton box package, 50pcs/layer, 100pcs/carton.
Lock latch: 1000pcs/carton
Mounting screws: 9000pcs/carton
Customized package also available.
