Product Details
Place of Origin: Guangdong, China
Brand Name: Longyuan lock
Certification: FCC,CE,RoHS
Model Number: LY-8821
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: Negotiable
Packaging Details: Carton box package:25pcs/line, 2lines/layer, 100PCS/CTN or Customized packaging according to customer requirements.
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 Piece/Pieces per Day
Lock Measurement: |
70.6mmx55.6mmx13.4mm |
Weight With Lock Latch: |
166g |
Rated Voltage: |
DC12V (available 5-24V Custom) |
Max Power: |
24W |
Work Temperature: |
-40℃ To +80℃ |
Usage: |
Supermarket Self-service Cabinet,parcel Cabinet,vending Machine Etc |
Lock Measurement: |
70.6mmx55.6mmx13.4mm |
Weight With Lock Latch: |
166g |
Rated Voltage: |
DC12V (available 5-24V Custom) |
Max Power: |
24W |
Work Temperature: |
-40℃ To +80℃ |
Usage: |
Supermarket Self-service Cabinet,parcel Cabinet,vending Machine Etc |

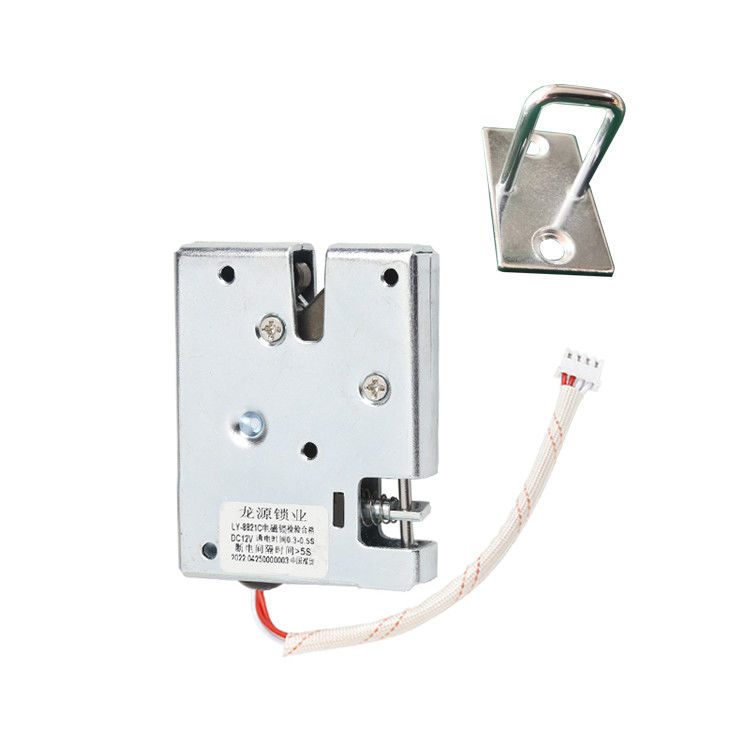

Modern CE Small Electromagnetic Lock Stainless steel Ultra Thin Electric Locks
Product Quick Detail
1.Model: LY-8821
2. Connector: SM-2Y,SMY-2A
3. Minimum voltage of unlocking: 6V
4. Signal Detection/switch (open/close):Open/ Close Feedback for option
5. Lock latch height: standard 29mm(available customized/accept custom)
Quality Assurance
1. ISO9001 Certified 17+Years OEM Factory
2. Each lock before shipment has a series of test, such as Power on/off of power supply;Neutral salt spray;Insulation;DC resistance;Ejector rod elasticity;Door force;VoltageTolerance;Overall lock Life etc.
3. All products have passed FCC, CE RoHS and other certifications.
Principle
It is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM.
Product Parameters
|
Product name
|
customized outdoor electronic intelligent lock
|
|
Place of Origin
|
China
|
|
Brand Name
|
Longyuan lock
|
|
Model Number
|
LY-8821
|
|
Lock Body size
|
70.6mmx55.6mmx13.4mm
|
|
Weight with hook
|
166g
|
|
Lock Body Material
|
SPCC
|
|
Material of lock tongue
|
SPCC,Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC12V(Voltage customized)
|
|
Current
|
2A
|
|
Min Unlock Voltage
|
9.5V
|
|
Max power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Work temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Salt spray testing
|
≥48hours
|
|
Signal detection/switch(open/close)
|
Open/ Close Feedback for option
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
