Product Details
Place of Origin: Guangdong, China
Brand Name: Longyuan Lock
Certification: FCC CE RoHS ISO9001
Model Number: LY-8839
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: Negotiable
Packaging Details: Carton box:50pcs/layers;100PCS/CTN or Customized packaging according to customer requirements. Material of Package : K=K Reinforcement Carton
Delivery Time: 5-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000PCS/DAY
Type: |
Magnetic Solenoid Lock |
Function: |
Locking And Releasing |
Application: |
Automatic Door, Cabinet Door, Drawer, Etc. |
Lock Body Size: |
80mmx80mmx14mm |
Weight With Hook: |
268g |
Current: |
2A |
Blackout Interval: |
>5sec |
Life Time: |
500,000 Times |
Material: |
Stainless Steel |
Suitable Humidity: |
0~90%RH |
Suitable Temperature: |
-20℃~+55℃ |
Voltage: |
DC12V |
Type: |
Magnetic Solenoid Lock |
Function: |
Locking And Releasing |
Application: |
Automatic Door, Cabinet Door, Drawer, Etc. |
Lock Body Size: |
80mmx80mmx14mm |
Weight With Hook: |
268g |
Current: |
2A |
Blackout Interval: |
>5sec |
Life Time: |
500,000 Times |
Material: |
Stainless Steel |
Suitable Humidity: |
0~90%RH |
Suitable Temperature: |
-20℃~+55℃ |
Voltage: |
DC12V |

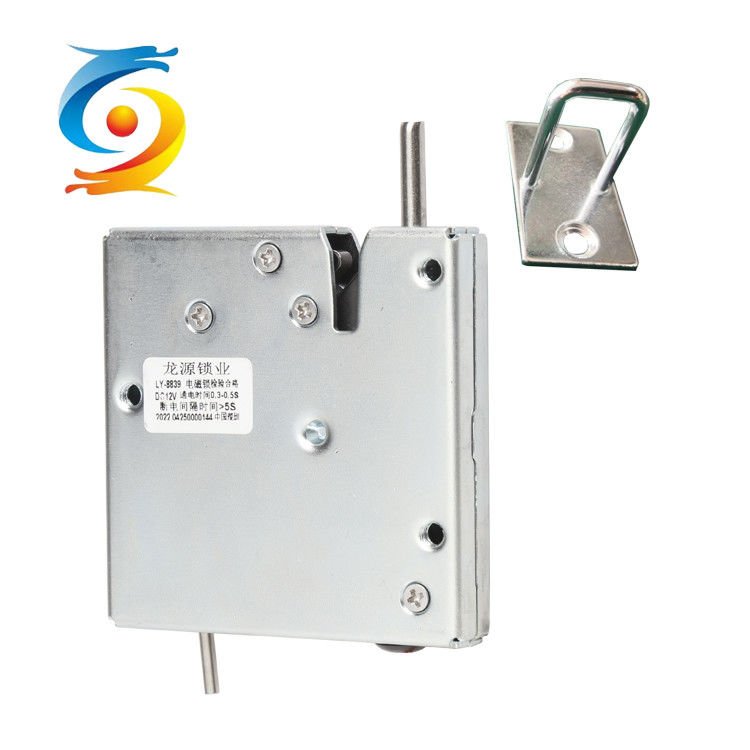

Factory Direct Sale Mini Smart Parcel Lock DC12V Electric Magnetic Look for Logistic
Product Description
1.Product Model: LY-8839
2. Elasticity of Opening door: ≥580g ±15%
3. Signal Detection/switch (open/close):Open/ Close Feedback for option
4. Max bearing force of the lock latch:≥600N
Principle
Electronc magnetic lock is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM.
Customer Service
1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer actual demands and come out with optimum solution.
2. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
3. One-year warranty to our locks.
4. Buyer can dispatch technician to our factory for free training before delivery.
Product Specification
|
Product name
|
Electromagnetic lock
|
|
Place of Origin
|
Shenzhen China
|
|
Brand Name
|
Longyuan Lock
|
|
Model Number
|
LY-8839
|
|
Lock Body size
|
80mmx80mmx14mm
|
|
Weight with hook
|
268g
|
|
Weight with hook
|
SPCC,Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC12V(accept customized)
|
|
Min Unlock Voltage
|
6V
|
|
Current
|
2A
|
|
Max Power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Salt spray testing
|
≥48hours
|
|
Working temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/ switch(open/close)
|
Open/ Close Feedback for option
|
|
Install way
|
Screw
|
|
Unlock way
|
power on and emergency lever
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
Packing Detail
Standard package: Carton box package, 50pcs/layer, 100pcs/carton.
Package box size: 370*240*190(mm)
Lock latch: 1000pcs/carton
Mounting screws: 9000pcs/carton
Customized package also available.
