Product Details
Place of Origin: Guangdong, China
Brand Name: Longyuan Lock
Certification: FCC CE RoHS ISO9001
Model Number: LY-8817
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: Negotiable
Packaging Details: Carton box packing: 50pcs/layer, 2layers/carton, 100PCS/CTN,Material of Package : K=K Reinforcement Carton
Delivery Time: 5-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000PCS/DAY
Maximum Power On Time: |
Less Than 5 Seconds |
Rated Voltage: |
DC24V (5-24V Customized) |
Current: |
100mA |
Lock Body Size: |
80.6mmx55.6mmx14mm |
Weight With Hook: |
192g |
Material Of Lock: |
SPCC,Powder Metallurgy |
Work Temperature: |
-40℃ To +80℃ |
Salt Spray Testing: |
≥48hours |
Max Power: |
24W |
Usage: |
Parcel Locker,express Cabinet,vending Machine, Smart Locker |
Maximum Power On Time: |
Less Than 5 Seconds |
Rated Voltage: |
DC24V (5-24V Customized) |
Current: |
100mA |
Lock Body Size: |
80.6mmx55.6mmx14mm |
Weight With Hook: |
192g |
Material Of Lock: |
SPCC,Powder Metallurgy |
Work Temperature: |
-40℃ To +80℃ |
Salt Spray Testing: |
≥48hours |
Max Power: |
24W |
Usage: |
Parcel Locker,express Cabinet,vending Machine, Smart Locker |

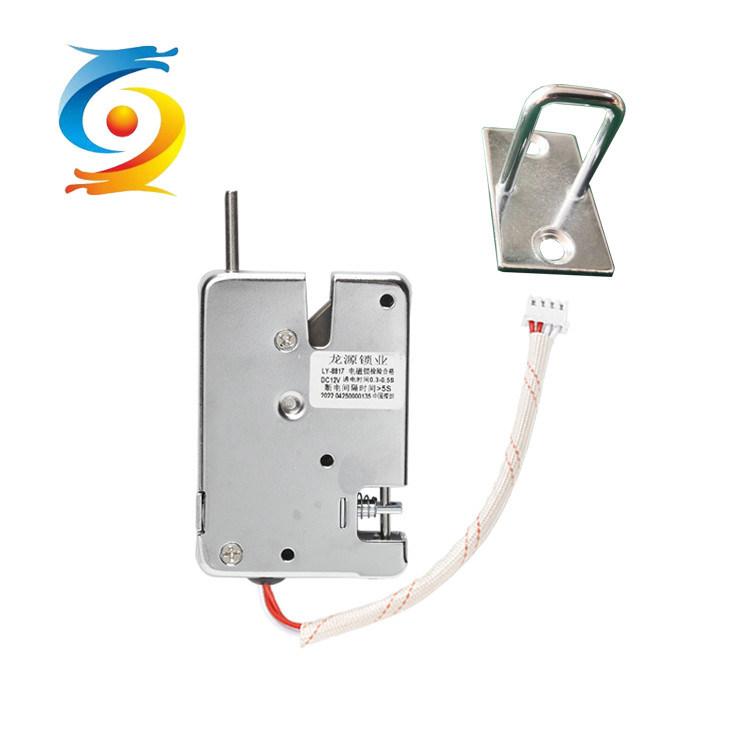

Smart Delivery Locker Magnetic Solenoid Lock DC24V1A Storage Cabinet Locks
Product Features
LY-8817 is an electromagnetic lock developed by Shenzhen Longyuan Lock Industry Co., Ltd.. The electronic locker lock is activated by a high-strength engine gear, and has a fully automatic unlocking, which is suitable for kinds of different storage cabinets, such as Shopping mall storage cabinet,entertainment center lockers,left-luggage office lockers,Automatic luggage room cabinet,train stations lockers,airport luggage storage cabinet,online stores and courier services cabinet,Post Office intelligent lockers,Post Office smart lockers etc.
Quality Assurance
1. ISO9001 Certified 17+Years OEM Factory
2. Each lock before shipment has a series of test, such as power on/off of power supply; Neutral salt spray;Voltage Tolerance; Overall lock Life; High temperature and humidity; Anti-vibration; Anti-shoke etc.
3. All products have passed FCC, CE RoHS and other certifications.
Failure analysis
How to judge equipment failure?
1. Equipment Power-off
Unlock method: Unlock by emergency pull rod method
2. The lock latch is not centered and offset
Unlock method: Unlock the emergency lever and pry the door
3. Power-on time is too long Cause the electromagnet frame to burn
Unlock method: Pry emergency lever to unlock
4. No response to emergency unlocking
Unlock method: Cut off or saw off emergency lever with pliers, and toggle stopper powder metallurgy unlocking
Specification
|
Product name
|
Electromagnetic lock
|
|
Place of Origin
|
Shenzhen China
|
|
Brand Name
|
Longyuan Lock
|
|
Model Number
|
LY-8817
|
|
Lock Body size
|
80.6mmx55.6mmx14mm
|
|
Weight with hook
|
192g
|
|
Weight with hook
|
SPCC,Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC24V(accept customized)
|
|
Min Unlock Voltage
|
19V
|
|
Current
|
1A
|
|
Max Power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Salt spray testing
|
≥48hours
|
|
Working temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/ switch(open/close)
|
Open/ Close Feedback for option
|
|
Install way
|
Screw
|
|
Unlock way
|
power on and emergency lever
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
Service and strength
We are electromagnetic cabinet lock leader in China, we have our own design and research team, we can customized product upon your actual demands. We have supplied products for many famous company home and abroad, such as FUIOU, HIVEBOX,CHINA TOWER,CLOUDBOX,EASIVEND,UBOX,FUJI BINGSHAN, TCN,COMPTON, TOPBAND, ZKH,DIYI BOX,DPC,MEITUAN,ELE ME etc. We believe our products will also meet or exceed your demands.
Welcome to contact us freely.
