Cabinet Small Electric Lock Solenoid 12v Electromagnetic Lock

Product Details

Place of Origin: Guangdong, China

Brand Name: Longyuan

Certification: FCC CE RoHS ISO9001

Model Number: LY-8826

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: Negotiable

Packaging Details: Carton box package:100PCS/CTN or Customized packaging according to customer requirements.

Delivery Time: 5-15work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10000PCS/DAY

Get Best Price
Contact Now
Specifications
Highlight:

Cabinet Small Electric Lock

,

Small Electric Lock Solenoid

Application:
Supermarket Self-service Cabinet,parcel Cabinet,vending Machine
Solenoid:
Rated For Intermittence Use
Maximum Power On Time:
Less Than 5 Seconds
Lock Body Size:
73mmx61.8mmx13mm
Weight With Hook:
183g
Lock Material:
SPCC, Powder Metallurgy
Rated Voltage:
DC12V(Voltage Customized)
Current:
2.5A
Max Power:
30W
Salt Spray Testing:
≥48hours
Application:
Supermarket Self-service Cabinet,parcel Cabinet,vending Machine
Solenoid:
Rated For Intermittence Use
Maximum Power On Time:
Less Than 5 Seconds
Lock Body Size:
73mmx61.8mmx13mm
Weight With Hook:
183g
Lock Material:
SPCC, Powder Metallurgy
Rated Voltage:
DC12V(Voltage Customized)
Current:
2.5A
Max Power:
30W
Salt Spray Testing:
≥48hours
Description

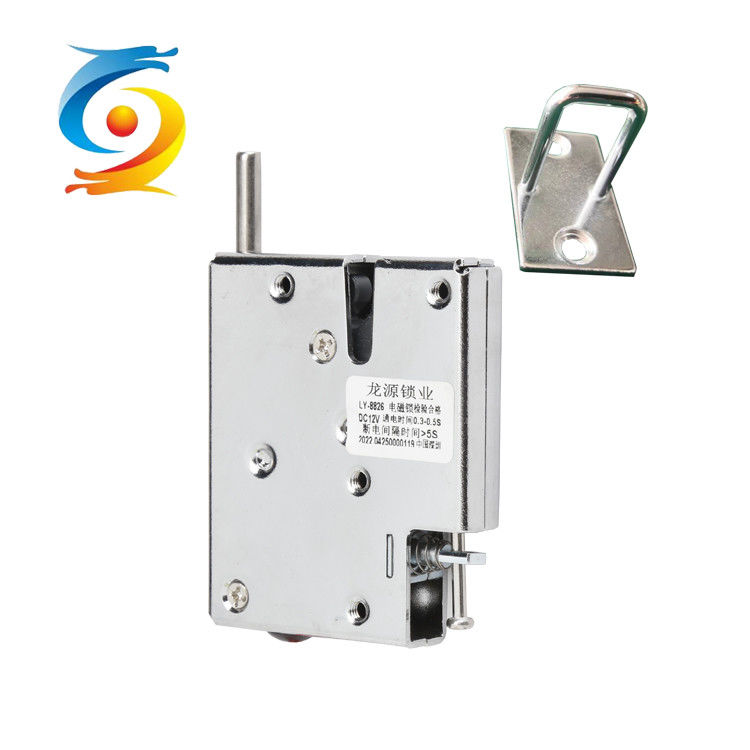

Cabinet Small Electric Lock Solenoid 12v Electromagnetic Lock

Electric Solenoid Lock Center Control 12v Small Electric Cabinet Lock for Locker



Product Features

LY-8826 is an electromagnetic lock developed by Shenzhen Longyuan Lock Industry Co., Ltd.. The electronic locker lock is activated by a high-strength engine gear, and has a fully automatic unlocking, which is suitable for kinds of different storage cabinets, such as supermarket self service storage cabinet, parcel locker,delivery locker,storage locker,express locker,package locker, Modular Parcel Locker,Laundry Locker,library locker etc.



Company Advantages

1.From design,research,production,we can provide one-stop service,we can customized products upon customer actual demands, OEM and ODM orders are warmly welcome.

2.Various product tests are the best guarantee for our company's product quality

3. Our company's management system has maintained a good operation

4. Our products passed CE RoHS FCC certifications etc

5.Some of our locks get letters patents.



Failure analysis

How to judge equipment failure?

1. The lock latch is not centered and offset

Unlock method: Unlock the emergency lever and pry the door

2. Power-on time is too long Cause the electromagnet frame to burn

Unlock method: Pry emergency lever to unlock

3. No response to emergency unlocking

Unlock method: Cut off or saw off emergency lever with pliers, and toggle stopper powder metallurgy unlocking

4. U-shaped part hook and torsion spring were broken

Unlock method: Unlock the emergency lever and pry the door



Product Specification

Product name
Electromagnetic lock
Place of Origin
Shenzhen China
Brand Name
Longyuan Lock
Model Number
LY-8826
Lock Body size
73mmx61.8mmx13mm
Weight with hook
183g
Weight with hook
SPCC,Powder Metallurgy
Surface treatment
Galvanized
Cable outer leakage length
170mm(accept customized)
Rated Voltage
DC12V(accept customized)
Min Unlock Voltage
9.5V
Current
2.5A
Max Power
24W
Manner of working
Open after power on
Reaction time
0.3sec
Blackout interval
>5sec
Salt spray testing
≥48hours
Working temperature
-40℃ to +80℃
Working humidity
95%
Working life
more than 100,000 times
Sample
Available
OEM
Accepted
Signal detection/ switch(open/close)
Open/ Close Feedback for option
Install way
Screw
Unlock way
power on and emergency lever
Certification
CE,ISO9001, RoHS
Warranty
1year
Cabinet Small Electric Lock Solenoid 12v Electromagnetic Lock 0
Cabinet Small Electric Lock Solenoid 12v Electromagnetic Lock 1

Packing Detail

Standard package: Carton box package, 50pcs/layer, 100pcs/carton.

Lock latch: 1000pcs/carton

Mounting screws: 9000pcs/carton
Customized package also available.
