Product Details
Place of Origin: Guangdong, China
Brand Name: Longyuan
Certification: FCC CE ROHS ISO9001
Model Number: LY-8817
Payment & Shipping Terms
Minimum Order Quantity: 1pieces
Price: Negotiable
Packaging Details: Carton Box Package:100PCS/CTN or Customized package available
Delivery Time: 5-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/DAY
Rated Voltage: |
DC24V |
Current: |
1A |
Lock Shell Material: |
SPCC |
Lock Body Size: |
80.6mmx55.6mmx14mm |
Work Temperature: |
-40℃ To +80℃ |
Weight With Hook: |
192g |
Salt Spray Testing: |
≥48hours |
Usage: |
Supermarket Self-service Cabinet,parcel Cabinet,vending Machine Etc |
Rated Voltage: |
DC24V |
Current: |
1A |
Lock Shell Material: |
SPCC |
Lock Body Size: |
80.6mmx55.6mmx14mm |
Work Temperature: |
-40℃ To +80℃ |
Weight With Hook: |
192g |
Salt Spray Testing: |
≥48hours |
Usage: |
Supermarket Self-service Cabinet,parcel Cabinet,vending Machine Etc |

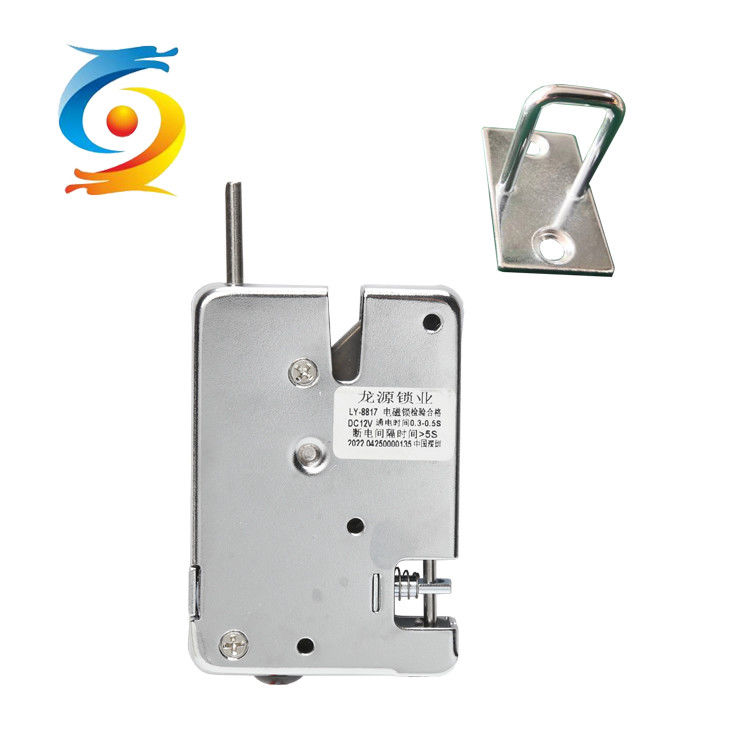

SPCC Smart Electrical Solenoid Lock Silver Color Magnetic Lock With Adjustable Connector
Product Quick Detail
1. Model: LY-8817
2. Connector: XH-4Y Male, accept customized
3. Elasticity of Opening door: ≥2.3kg ±15%
4.
Product Features
LY-8817 is an electromagnetic lock developed by Shenzhen Longyuan Lock company. The electronic locker lock is activated by a high-strength engine gear, and has a fully automatic unlocking, which is suitable for kinds of different storage cabinets, such as supermarket self service storage cabinet, shopping mall smart locker, employee locker, campus locker ,fresh cabinet,swimming pool locker,medicine electronic locker,school locker,bath centers electronic locker etc.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Standard package: Carton box package, 50pcs/layer, 2layers/carton, 100pcs/carton.
Carton size:370mmx270mmx140mm.
Producst Parameters
|
Product Name
|
Electric Solenoid lock
|
|
Model
|
LY-8817
|
|
Brand
|
Longyuan Lock
|
|
Size
|
80.6mmx55.6mmx14mm
|
|
Weight with lock hook
|
192g
|
|
Material of lock body
|
SPCC
|
|
Material of lock tongue
|
Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Working voltage
|
DC24V (Voltage customized)
|
|
Working current
|
1A
|
|
Min Unlock Voltage
|
19V
|
|
Maximum power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Working temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/switch(open/close)
|
Open/ Close Feedback for option
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
