Product Details
Place of Origin: Guangdong, China
Brand Name: Longyuan
Certification: FCC CE RoHS ISO9001
Model Number: LY-8826
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: Negotiable
Packaging Details: Carton:100PCS/CTN, standard box size 350*310*180(mm), accepted customized
Delivery Time: 5-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000PCS/DAY
Product Name: |
Smart Cabinet Lock |
DC Voltage: |
12V(Voltage Custom) |
Current: |
250mA |
Lock Material: |
SPCC, Powder Metallurgy,Stainless Steel |
Size: |
73mmx61.8mmx13mm |
Weight With Hook: |
183g |
Max Power: |
30W |
Work Temperature: |
-40℃ To +80℃ |
Salt Spray Test: |
≥48hours |
Blackout Interval: |
>5sec |
Product Name: |
Smart Cabinet Lock |
DC Voltage: |
12V(Voltage Custom) |
Current: |
250mA |
Lock Material: |
SPCC, Powder Metallurgy,Stainless Steel |
Size: |
73mmx61.8mmx13mm |
Weight With Hook: |
183g |
Max Power: |
30W |
Work Temperature: |
-40℃ To +80℃ |
Salt Spray Test: |
≥48hours |
Blackout Interval: |
>5sec |

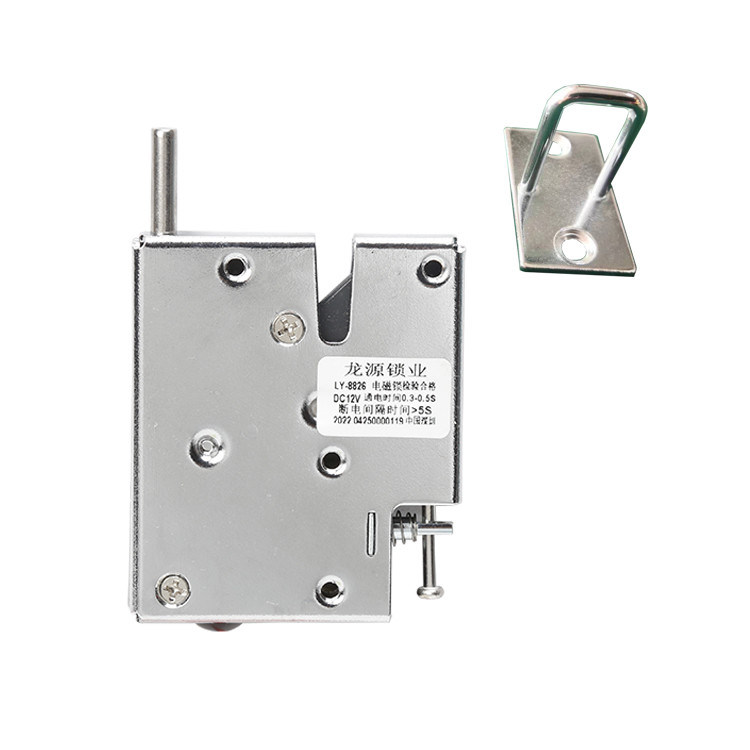

Top Secure Cost Effective Electronic Solenoid Cabinet Lock Manufacturer Direct
Product features
LY-8826 electromagnetic lock is designed by Shenzhen Longyuan Lock factory with 17+years experience.
LY-8826 electronic magnetic lock has the advantages of high sensitivity, shockproof, pry-proof, and anti-rust capabilities, which fully guarantee the reliability and stability of customers when using it.
Principle
It is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM.
Usage
Widely used in storage locker,express locker,package locker, modular parcel locker,laundry locker,library locker,smart locker,entertainment center lockers,left-luggage office lockers,Automatic luggage room cabinet,train stations lockers,airport luggage storage cabinet,online stores and courier services cabinet,Post Office intelligent lockers,Post Office smart lockers,bus station smart lockers,travel centers luggage storage cabinet etc.
Failure analysis
How to judge equipment failure?
1. Terminal head dropped of Electromagnetic lock
Unlock method: Unlock by emergency pull rod method
2. Power-on time is too long Cause the electromagnet frame to burn
Unlock method: Pry emergency lever to unlock
3. U-shaped part hook and torsion spring were broken
Unlock method: Unlock the emergency lever and pry the door
Specification
|
Product name
|
Electromagnetic lock
|
|
Place of Origin
|
Shenzhen China
|
|
Brand Name
|
Longyuan Lock
|
|
Model Number
|
LY-8826
|
|
Lock Body size
|
73mmx61.8mmx13mm
|
|
Weight with hook
|
183g
|
|
Weight with hook
|
SPCC,Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC12V(accept customized)
|
|
Min Unlock Voltage
|
9.5V
|
|
Current
|
2.5A
|
|
Max Power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Salt spray testing
|
≥48hours
|
|
Working temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/ switch(open/close)
|
Open/ Close Feedback for option
|
|
Install way
|
Screw
|
|
Unlock way
|
power on and emergency lever
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
Packing and delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Standard package: Carton box package, 50pcs/layer, 100pcs/carton.
Customized package also available.
