Product Details
Place of Origin: Shenzhen China
Brand Name: Longyuan
Certification: FCC CE RoHS ISO9001
Model Number: LY-8817
Payment & Shipping Terms
Minimum Order Quantity: 10pcs(sample available)
Price: Negotiable
Packaging Details: Carton box package, 50pcs/layer, 2layers/carton, package accepted customized.
Delivery Time: 5-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/day
Lock Size: |
80.6mmx55.6mmx14mm |
Weight With Hook: |
192g |
Lock Material: |
SPCC, Powder Metallurgy |
Rated Voltage: |
DC24V |
Current: |
1A |
Max Power: |
24W |
Work Temperature: |
-40℃ To +80℃ |
Salt Spray Testing: |
≥48hours |
Blackout Interval: |
>5Sec |
Application: |
Intelligent Storage Locker,smart Employee Locker,campus Storage Cabinet Etc |
Lock Size: |
80.6mmx55.6mmx14mm |
Weight With Hook: |
192g |
Lock Material: |
SPCC, Powder Metallurgy |
Rated Voltage: |
DC24V |
Current: |
1A |
Max Power: |
24W |
Work Temperature: |
-40℃ To +80℃ |
Salt Spray Testing: |
≥48hours |
Blackout Interval: |
>5Sec |
Application: |
Intelligent Storage Locker,smart Employee Locker,campus Storage Cabinet Etc |

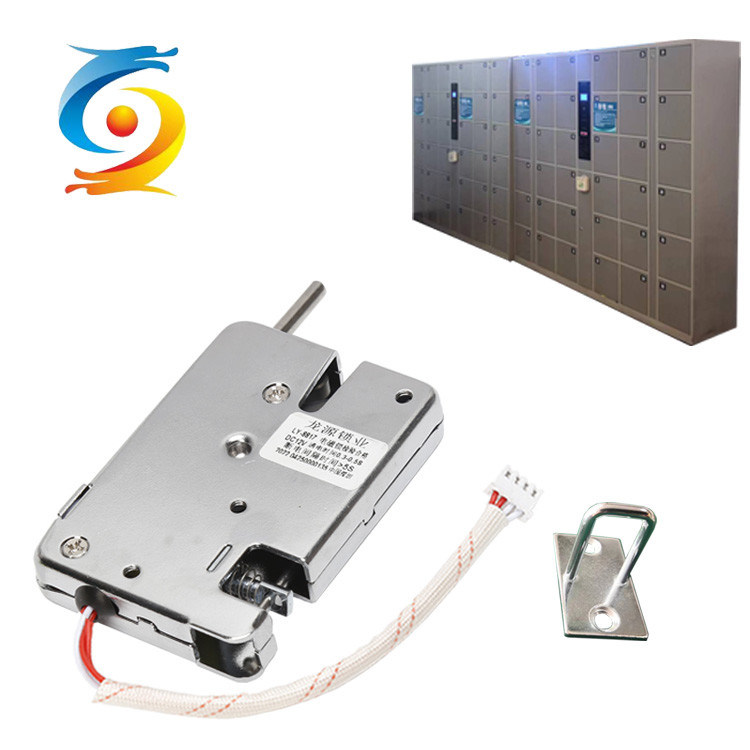

Luggage Left Smart Storage Locker Lock Solenoid Customized Electronic Cabinet Lock
Quick Detail
Product Description
LY-8817 is an electromagnetic lock developed by Shenzhen Longyuan
anti-prying and anti-rust ability, which fully guarantees the reliability and stability of customers in use.
Principle
Electromagnetic Lock is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM. If the password is correct, the electromagnetic actuator will be driven to unlock; if the password is incorrect, the operator will be allowed to re-enter the password for up to three times; If it is not correct, the single-chip microcomputer will send an alarm to the intelligent monitor through the communication line.
| Specifications | |||
| Brand | Longyuan Lock | Product Name | electromagnetic lock |
| Model | LY-8817 | Size | 80.6mmx55.6mmx14mm |
| Weight with lock hook | 192g | Working Voltage | DC24V (Voltage customized) |
| Material of lock body | SPCC | Working Current | 1A |
| Material of lock tongue | Powder Metallurgy | Min Unlock Voltage | 19V |
| Manner of Working | Open after power on | Max power | 24W |
| Resistant | 24Ω | Reaction time | 0.3sec |
| Strength of anti-ceiling door | 24V / 5kg | Max bearing force of the lock latch | ≥600N(The lock is not opened) |
| Elasticity of Opening door | ≥2.3kg ±15% | Load unlocking test | ≥50N(Power on to unlock) |
| Max bending resistance of lock latch (elastic deformation) | ≥80N | Connector | XH-4Y Male(The strength between the rubber shells is 2kg for one minute, and there is no peeling, damage and poor conduction) |
| Standard Outer leakage Cable Length | 170mm (cable customized) | Work temperature | -40℃ to +80℃ |
| Surface treatment | Galvanized | Working humidity | 95% |
| Working life | More than 100,000times | Sample | Accepted |
| Certification | CE,ISO9000,RoHS | Warranty | 1year |
| Install Style | Screw | OEM | Accepted |
| Signal detection/ switch (open/close) | Open/ Close Feedback for option | ||
Company profile
Shenzhen Longyuan Lock Industry Co.,Ltd. founded in China in 2007,Longyuan lock has a full line of products overseen by our in-house engineering team and company-owned manufacturing facilities.
By owning and operating the supply chain we are able to ensure the Longyuan lock standard of quality and availability for our global customers.
Longyuan Lock committed to be the global leader in electromagnetic lock.
