Product Details
Place of Origin: Shenzhen China
Brand Name: Longyuan
Certification: FCC CE RoHS ISO9001
Model Number: LY-8823
Payment & Shipping Terms
Minimum Order Quantity: 10pcs(sample available)
Price: Negotiable
Packaging Details: Carton box package, 50pcs/layer, 2layers/carton, package accepted customized.
Delivery Time: 5-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/day
Lock Size: |
70mmX70mmX13.2mm |
Weight With Hook: |
210g |
Lock Material: |
SPCC, Powder Metallurgy |
Rated Voltage: |
DC12V |
Current: |
2.5 |
Max Power: |
30W |
Work Temperature: |
-40℃ To +80℃ |
Application: |
Intelligent Laundry Locker,smart Logistic Locker Etc |
Lock Size: |
70mmX70mmX13.2mm |
Weight With Hook: |
210g |
Lock Material: |
SPCC, Powder Metallurgy |
Rated Voltage: |
DC12V |
Current: |
2.5 |
Max Power: |
30W |
Work Temperature: |
-40℃ To +80℃ |
Application: |
Intelligent Laundry Locker,smart Logistic Locker Etc |
OEM ODM Customized Smart Electronic Lock Automatic Intelligent Laundry Locker Lock
Product Quick Detail
Product Description

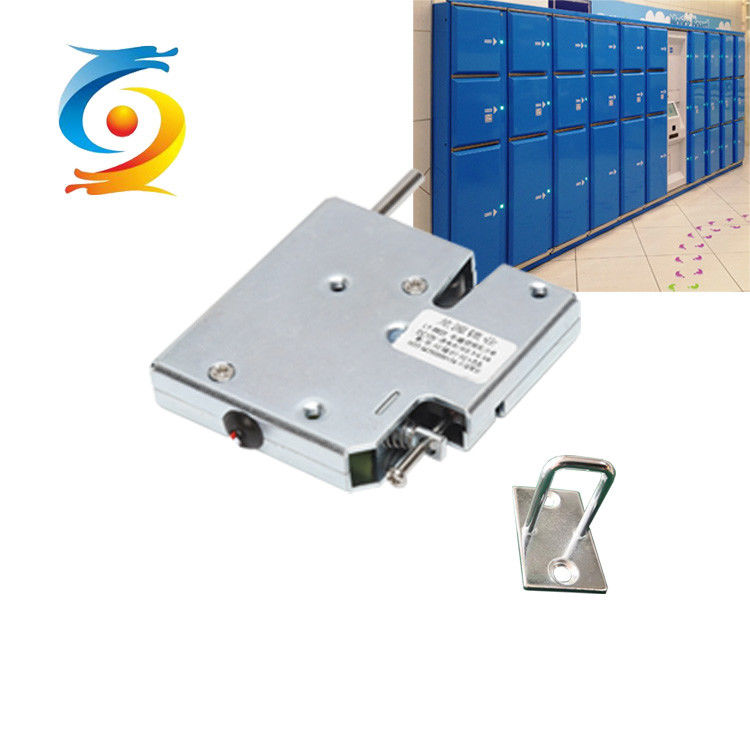

LY-8823 is an electromagnetic lock developed by Shenzhen Longyuan
LY-8823 electromagnetic lock has the advantages of high sensitivity, shockproof,
anti-prying and anti-rust ability, which fully guarantees the reliability and stability of customers in use.
| Specifications | |||
| Brand | Longyuan Lock | Product Name | Electromagnetic lock |
| Model | LY-8823 | Size | 70mmx70mmx13.2mm |
| Weight with lock hook | 210g | Working Voltage | DC12V (Voltage 5-24V customized) |
| Material of lock body | SPCC | Working Current | 2.5A |
| Material of lock tongue | Powder Metallurgy | Min Unlock Voltage | 6V |
| Manner of Working | Open after power on | Max power | 30W |
| Resistant | 4.8Ω | Reaction time | 0.3sec |
| Strength of anti-ceiling door |
12V/12kg; 10V/7kg 8V/5kg |
Max bearing force of the lock latch | ≥600N(The lock is not opened) |
| Elasticity of Opening door | ≥3.5kg ±15% | Load unlocking test | ≥150N(Power on to unlock) |
| Max bending resistance of lock latch (elastic deformation) | ≥80N | Connector | SM Female and Male(The strength between the rubber shells is 2kg for one minute, and there is no peeling, damage and poor conduction) |
| Standard Outer leakage Cable Length | 170mm (cable customized) | Work temperature | -40℃ to +80℃ |
| Surface treatment | Galvanized | Working humidity | 95% |
| Working life | More than 100,000times | Sample | Accepted |
| Certification | CE,ISO9000,RoHS | Warranty | 1year |
| Install Style | Screw | OEM | Accepted |
| Signal detection/ switch (open/close) | Open/ Close Feedback for option | ||
| Test | Test power on/off of power supply; Neutral salt spray; Insulation; DC resistance; Ejector rod elasticity; Door force; Voltage Tolerance; Overall lock Life; High temperature and humidity; Anti-vibration; Anti-shoke etc | ||
| Usage |
Storage Cabinet, Letter News Paper Box, Smart Locker, File Cabinet, Filing Cabinet, Drawer, Distribution Box, Wardrobe, Vending Machine, Bookcase, Tools Box, Deep-freeze Fresh Cabinet, Employee Locker, Checkout Counter, Safe Deposit Cabinet etc. |
||
Company profile
Shenzhen Longyuan Lock Industry Co.,Ltd. founded in China in 2007,Longyuan lock has a full line of products overseen by our in-house engineering team and company-owned manufacturing facilities.
By owning and operating the supply chain we are able to ensure the Longyuan lock standard of quality and availability for our global customers.
Longyuan Lock committed to be the global leader in electromagnetic lock.
